Flow Control – Water Flow Meter for Injection Molding
Flow control takes over continuous electronic flow measurement of the injection mold cooling circuit.
The flow control continuously measures the flow rate and return temperature from the various cooling zones during the operation of the injection molding machine. Indicators in the status light array immediately alert the machine operator if tolerance limits for set flow or temperature values are exceeded. Flow control can also send error signals to the injection molding machine. You
-
Why use electronic flow monitoring?
Cooling water deposits can contaminate cooling circuits in injection molds. These deposits gradually limit the inner diameter of the cooling circuit. This in turn causes flow rate problems that are rarely detected by standard flow controllers. The result is an increase in the production of scrap parts.
Our electronic flow monitoring solves this problem. Flow Control continuously measures flow rate and return temperature in each cooling zone.
Benefits
Simple retrofit
-

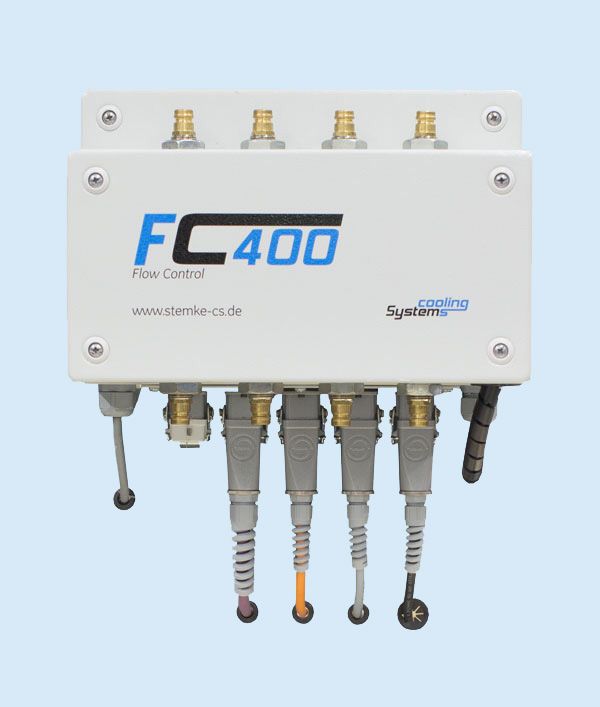

Digital and multifunctional - flow control monitoring unit
A flow control monitoring unit is much more than a digital flow meter. The user-friendly touch display allows you to see the current zone-specific flow and return temperature of all connected circuits at a glance. Temperature and flow limits can be set individually for each injection mold. Flow Control currently supports up to 40 cooling circuits per injection tool. Flow Control can assign an individual name to each cooling circuit on the tool and can store up to 250 tool datasets in the integra
-

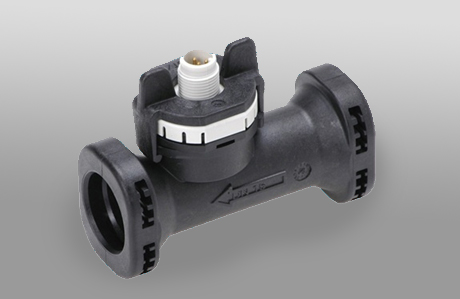

Precise and long-lasting – flow control sensors
Flow Control uses only high quality and durable sensor technology to measure and monitor the flow rate and temperature of the water circuit
Benefits
High operational reliability and longevity of flow sensors using the eddy current method
Accurate flow measurement results even under extreme temperature fluctuations
Excellent media resistance and insensitivity to contamination
Measurement
